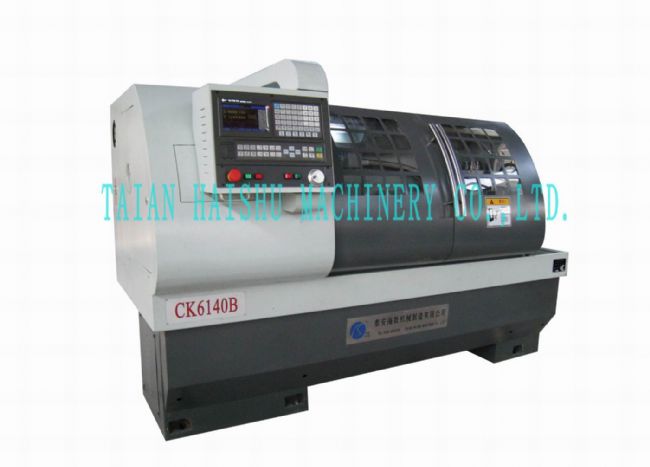

CK6140B CNC LATHE
UpdateTime:2012-9-19 20:20:52
Views:
Brand:HaiShu
Model:CK6140B
Order Hotline:+86-538-8606169
CK6140B CNC lathe is specializing in the production of CNC machine tool manufacturers, factory direct sale, reasonable price, welcome to come to discuss the purchase
Details

CK6140B CNC Lathe

Second gear frequency conversion governor

1. Technical parameters

Item

Project name

Technical paramaters

technical specifications

Max.swiming over the bed dia. (mm)

Φ400

Max.swiming over pallet(mm)

Φ245

Max.the workpiece length(mm)

750/1000

Main transmission

Main transmission form

2 handles gears mechanical transmission, stepless frequency conversion timing

Number of spindle speeds

stepless

Range of spindle speed(r/min)

50~1800

The form of the spindle head

NO.6   A2 type

Spindle centering axial taper

1:4

Spindle bore taper(mm)

MT6

Main motor power(kw)

5.5kw

Feed system

Turret maximum stroke(mm)

X - axis: 260         Z - axis:760,1020

Fast-moving feed(mm/min)

X - axis:5000         Z - axis:10000

Repeat positioning accuracy(mm)

X - axis:0.01         Z - axis:0.015

Workpiece accuracy

IT6-IT7

Workpiece surface roughness

Ra1.6

tailstock

Dia. of tailstock quill(mm)

Φ60

Tailstock quill stroke(mm)

120

Taper of tailstock quill

MT5

Tool post

Standard accessories

4 station electric tool

Opinional accessories

Horizontal 6,8-station electric turret

or gang-type tool camier

Repeat positioning accuracy(mm)

0.008

Section of turning tool(mm)

25*25

Size and weight

The size of the machine

(length*width*height)(mm)

2405/2655*1700*1800

Net weight of the machine(kg)

1900/2100

2. Main features

1)     Horizontal flat bed

2)     Feed of X Z axis are driven by ball screw with servo-motor

3)     the guideway use hyperacoustic quenching.

4)     Hardended and ground bed guide way coated with Turcite-B

5)     high pression ball screw, High rigid precision composite bearing structure

6)     ball screw and the guide surface combination use automatic lubrication system.

3. Configuration

(1)the controller system: GSK (Guangzhou), KND (Beijing), Guangtai, Simens (Germany),  Fanuc (Japan)
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four, horizontal six, horizontal eight,gang-type tool carrier and ect
(5) Lubrication configuration: automatic oil lubrication system.

4. Uses

Suitable for rough turning and precision machining of steel castings, iron castings and other materials.
