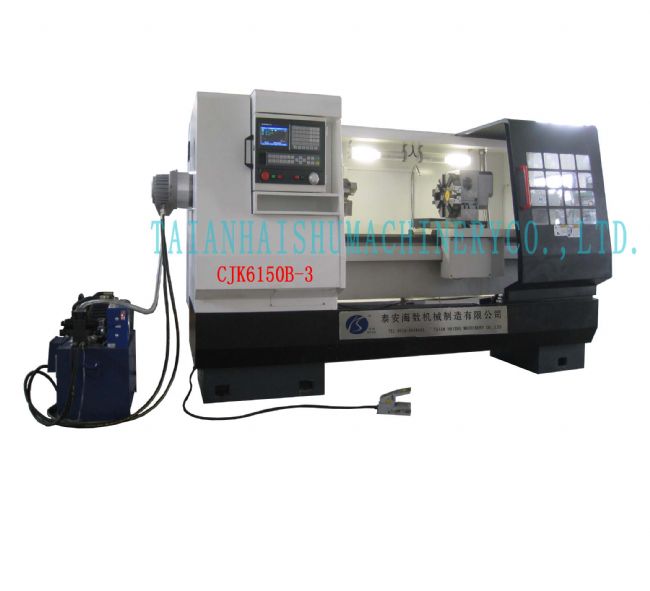

CJK6150B-3 High-grade type CNC Lathe(High-precision, high-profile)
UpdateTime:2013-6-11 20:20:47
Views:
Brand:HaiShu
Model:CJK6150B-3
Order Hotline:+86-538-8606169
Details

        CJK6150B-3  CNC LATHE

        (High-precision, high-profile)

1. Technical parameters

items

parameters

Maximum workpiece swing diameter over bed

Φ500mm

Dragged on board the maximum workpiece swing diameter

Φ290mm

Maximum length of workpiece

750/1000/1500mm

Range of spindle speeds

20-100100~550400~1600rpm

Spindle bore diameter

Φ82mm

Skateboard maximum stroke (X)

290mm

Width of guide rails

390mm

The form of spindle head

D-8

Taper of spindle bore

120

Turret Number of tool

4/6/8/ or row of knife

Tool cross-section specifications

25mm×25mm

Motor minimum setting unit

Z: 0.001mm ,   X: 0.001mm

Arbor fast forward speed

Z: 10m/min,    X: 8m/min

Tailstock quill taper

MT5

Tailstock quill maximum moving distance

150mm

Power of main motor

7.5KW

The lathe Dimensions (L × W × H)

2600/2850/3350 mm×1300 mm×1750mm

Lathe Net

2600/2800/3200kg

2. main features

(1) Frequency stepless speed third gear, has the advantage of independent spindle and the gear shift, high torque , wide speed range, high processing efficiency, high precision, energy saving and environmental protection.

(2) Spindle diameter increases(φ82mm)

(3) The width of the bed: 390mm.

3. Configuration

(1) Control system optional: Guangshu's GSK, Beijing's KND, Germany's Siemens, Japan's Fanuc, etc..
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret
optional: Vertical four, horizontal six, horizontal eight,  rows of knives and so on.
(5) Lubrication configuration: automatic oil lubrication system.

4. Uses

            Suitable for steel, cast iron, non-ferrous metals and other materials roughing, semi-finish  turning and precision machining
