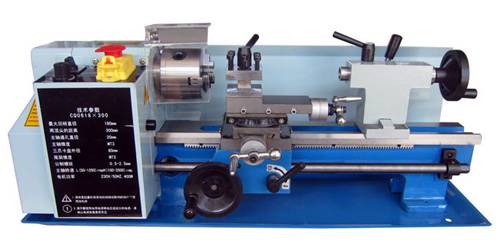

CQ0618*300 mini lathe
Main features:
1.spindle speed digital display
2.High power dc motor
3.infinitely variable speeds
4.Super audio quenching lathe bed
5.Import speed control unit
Technical parameter:
|
Distance Between Centers |
300mm |
|
Maximum rotating diameter on bed body |
180mm |
|
max rotatin diameter on horizontal dragging plate |
110mm |
|
Spindle bore taper |
MT3 |
|
Tailstock sleeve taper |
MT2 |
|
3 jaw chuck outside diameter |
80mm |
|
Spindle bore diameter |
20mm |
|
Cross slide travel |
65mm |
|
Tool post travel |
35mm |
|
Range of metric threads |
0.5-2.5mm |
|
|
12-52TPI |
|
Precision of the spindle |
0.01mm |
|
Speed of the spindle |
50-2500/100-2500RPM |
|
Moto power |
400w |
|
Voltage and HZ |
230V/50Hz or 120V/60Hz |
|
Net weight |
40Kg |
|
Gross weight |
45Kg |
|
Dimension size |
810×310×320mm |
