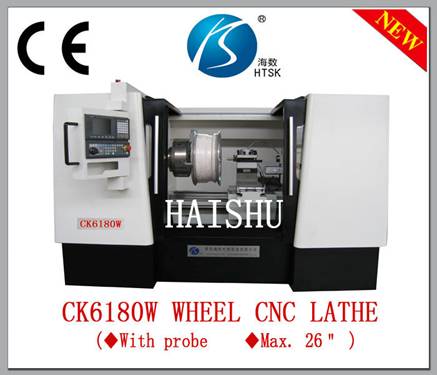

CK6180W Wheel CNC lathe
CK6180W Wheel CNC lathe
1．Technical parameters
|
Project name |
Unit |
Technical paramaters |
|
Max. turning diameter over the bed |
Inch |
31”（φ800mm） |
|
Machining diameter of the wheel |
Inch |
Manual chuck 5＂~22＂ 16＂~26”（Optional） Automatic chuck（Optional） 13＂~22＂ |
|
Max. machining length of the workpiece |
mm |
750 |
|
Max. measured depth of the probe |
mm |
100 |
|
Max. machining depth of the tool |
mm |
100 |
|
Machning accuracy |
IT6-IT7 | |
|
Surface roughness |
um |
Ra0.8~0.1 |
|
Main transmission form |
Independent spindle; frequency conversion stepless | |
|
Range of spindle speed |
rpm |
150~2000 |
|
Main motor power |
kw |
11 |
|
Fast-moving feed |
mm/min |
X - axis:5000 Z - axis:8000 |
|
Repeat positioning accuracy |
mm |
X - axis:0.01 Z - axis:0.015 |
|
Standard accessories |
4 station electric tool | |
|
Repeat positioning accuracy(mm) |
mm |
0.008 |
|
Section of turning tool(mm) |
mm |
25×25 |
|
The size of the machine (L×W×H) |
mm |
2680×1750×1980 |
|
Net weight of the machine(kg) |
3400 | |
2. Main features
◆Wheel special machine tool. The new design, new structure,new technology.
◆Achieve the wheel surface profile measurement and data collection and Program Optimization.
◆Automatic precision repair and machining in accordance with the curve of the wheel surface.
◆Spindle frequency stepless speed.
◆X / Z axis servo drive.
◆Manual jaw self-centering chuck.
◆Machine guard full protection.
◆Security and fault alarm indication.
◆Automatic oil lubrication.
3. Uses
◆The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
◆The machine tool has also the function of the general CNC lathes .
